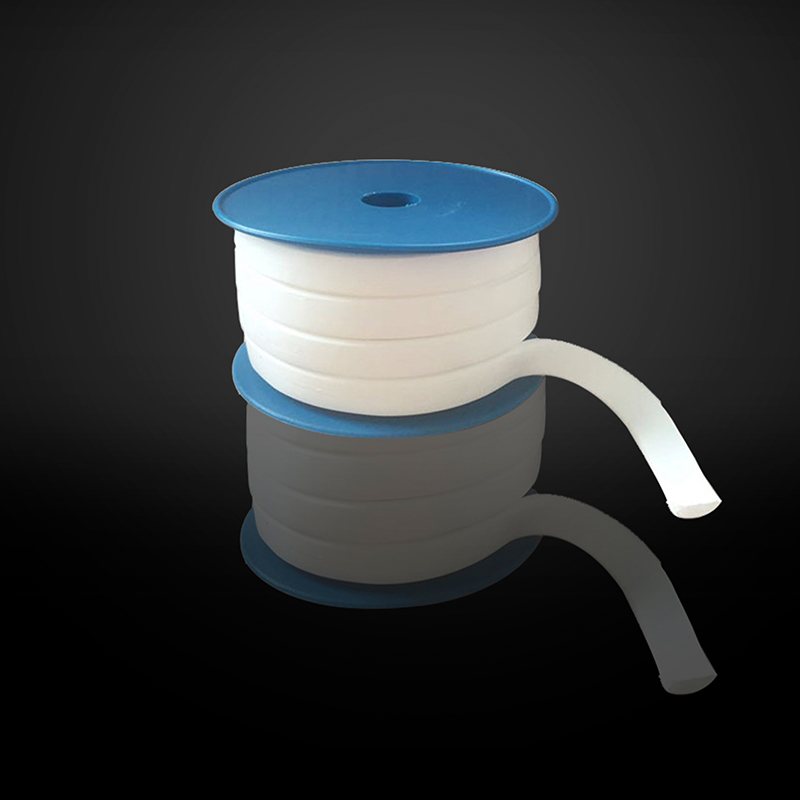

Expanded PTFE Tape Featured Image
  • Expanded PTFE Tape

Short Description:

*100% pure expanded foam PTFE tape used as a flange gasket sealant

*Soft and pliable, yet tough and strong

*Conforms to irregular surfaces



● Easy use and replacement

● Wide service scope




Download as PDF

Product Detail

Product Tags

Technical Data Sheet
No. Project Technical Indexes
1 PH Range 0-14
2 Density 0.7-0.8g/cm3
3 Temperature resistance -260-+260℃
4 High pressure resistance 20~25Mpa
5 Elongation 20~30%
6 Tensile strength 30~35Mpa
Regular Size

NO. SIZE NO. SIZE
1 3mm*1.5mm*30m 15 16mm*4mm*10m
2 3mm*2mm*30m 16 20mm*3mm*5m
3 6mm*3mm*20m 17 20mm*4mm*5m
4 7mm*2.5mm*20m 18 20mm*5mm*5m
5 9mm*3mm*15m 19 20mm*7mm*5m
6 9mm*4mm*15m 20 25mm*4mm*5m
7 10mm*3mm*10m 21 25mm*5mm*5m
8 10mm*4mm*10m 22 25mm*8mm*5m
9 10mm*5mm*10m 23 25mm*10mm*5m
10 12mm*3mm*10m 24 30mm*3mm*5m
11 12mm*4mm*10m 25 30mm*4mm*5m
12 12mm*5mm*10m 26 40mm*4mm*5m
13 12mm*6mm*10m 27 50mm*4mm*5m
14 14mm*5mm*10m 28 100mm*0.5mm*10m

DongLin provide cutomsized sizes and length for the PTFE Joint Sealant, PTFE Gasket Tape, Expanded PTFE Tape
