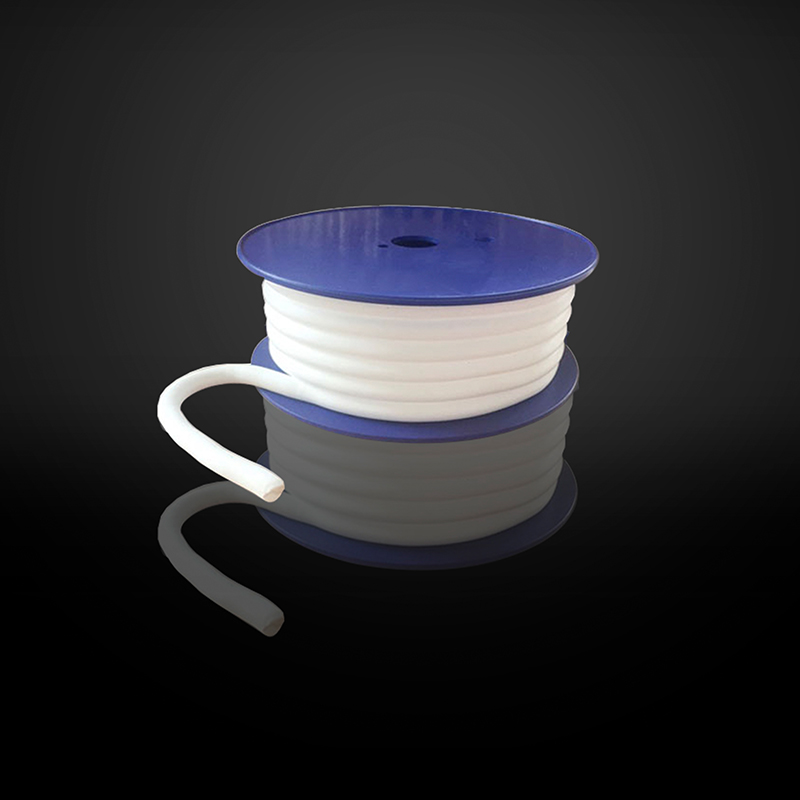

White Expanded PTFE Tape with Adhesive on One Side Featured Image
  • White Expanded PTFE Tape with Adhesive on One Side

Short Description:

*Expanded PTFE gasket tape is a soft, pliable ribbon with a self-adhesive applied to one side. Poly-Temp Joint is a tough, flexible, and economical universal gasket that replaces cut gaskets in a variety of regular and severe service applications. It will not deteriorate with age, is unaffected by common chemicals. This unique material is highly compressible and fills severe irregularities in sealing surfaces.



● 100% pure PTFE material, FDA grade

● Easy and flexibel to install

● Anti aging, anti acidic medium&alkaline medium






Download as PDF

Product Detail

Product Tags

Technical Data Sheet
No. Project Technical Indexes
1 PH Range 0-14
2 Density 0.7-0.8g/cm3
3 Temperature resistance -260-+260℃
4 High pressure resistance 20~25Mpa
5 Elongation 20~30%
6 Tensile strength 30~35Mpa
Regular Size

NO. SIZE NO. SIZE
1 3mm*1.5mm*30m 15 16mm*4mm*10m
2 3mm*2mm*30m 16 20mm*3mm*5m
3 6mm*3mm*20m 17 20mm*4mm*5m
4 7mm*2.5mm*20m 18 20mm*5mm*5m
5 9mm*3mm*15m 19 20mm*7mm*5m
6 9mm*4mm*15m 20 25mm*4mm*5m
7 10mm*3mm*10m 21 25mm*5mm*5m
8 10mm*4mm*10m 22 25mm*8mm*5m
9 10mm*5mm*10m 23 25mm*10mm*5m
10 12mm*3mm*10m 24 30mm*3mm*5m
11 12mm*4mm*10m 25 30mm*4mm*5m
12 12mm*5mm*10m 26 40mm*4mm*5m
13 12mm*6mm*10m 27 50mm*4mm*5m
14 14mm*5mm*10m 28 100mm*0.5mm*10m

DongLin provide cutomsized sizes and length for the PTFE Joint Sealant, PTFE Gasket Tape, Expanded PTFE Tape
